Experimental Data
RAH solar street lights successfully achieved the extreme climate goal of “normal lighting for 10 consecutive days of rainy days” through 98% discharge efficiency, adaptive load management and high-capacity energy storage batteries. Its performance is particularly suitable for rainy and low-sunlight areas, providing reliable support for urban resilience.

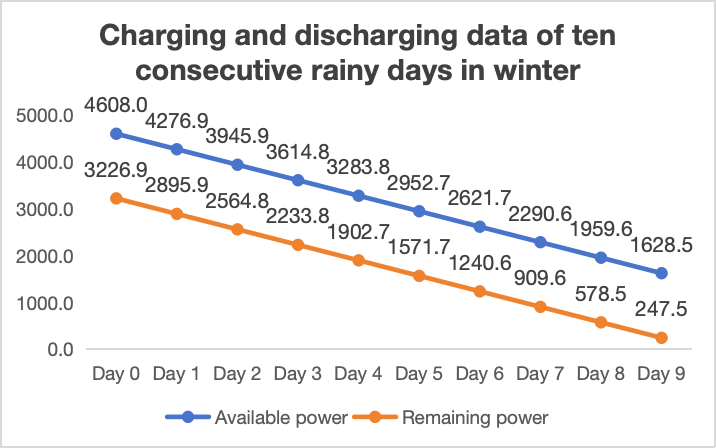

Street light simulation data-10 days
| Winter rainy day charging and discharging settings | Charge and discharge data on rainy days in winter | |||
| Product Specifications (H) | 14M | Number of days | Available power | Remaining power |
| Product Power(W) | 160 | Day 0 | 4608.0 | 3226.9 |
| Photovoltaic panel area | 2.45㎡ | Day 1 | 4276.9 | 2895.9 |
| Photovoltaic panel power (W) | 600 | Day 2 | 3945.9 | 2564.8 |
| Battery Energy Storage | 200 | Day 3 | 3614.8 | 2233.8 |
| Charging efficiency | 35% | Day 4 | 3283.8 | 1902.7 |
| Sunshine time | 5h | Day 5 | 2952.7 | 1571.7 |
| Daily charging capacity (Wh) | 1050 | Day 6 | 2621.7 | 1240.6 |
| Total discharge (Wh) | 1381.1 | Day 7 | 2290.6 | 909.6 |
| Discharge efficiency | 95% | Day 8 | 1959.6 | 578.5 |
| Lighting electricity (Wh) | 1312 | Day 9 | 1628.5 | 247.5 |

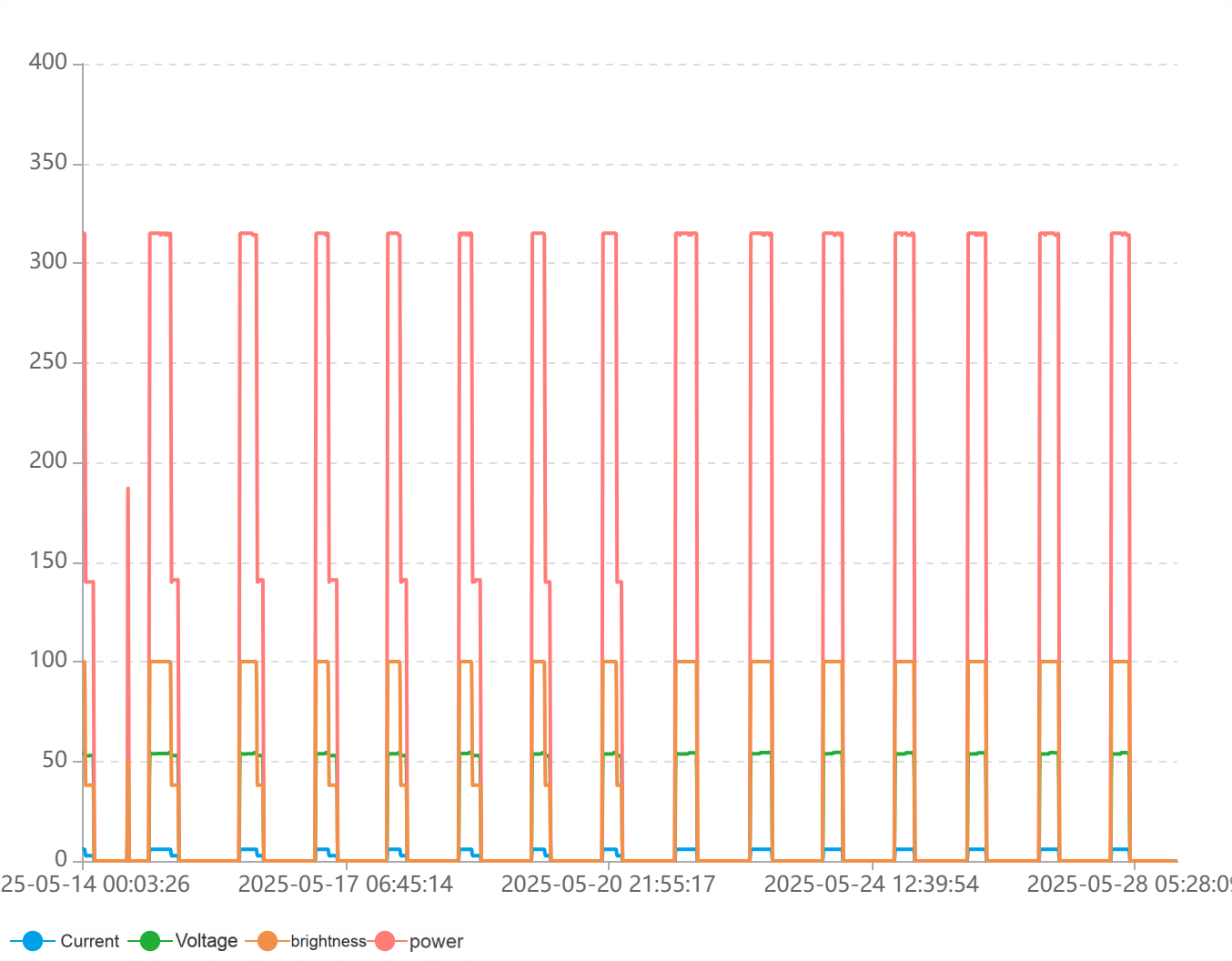

Street light test data - 14 days
Sampling period: 30 minutes

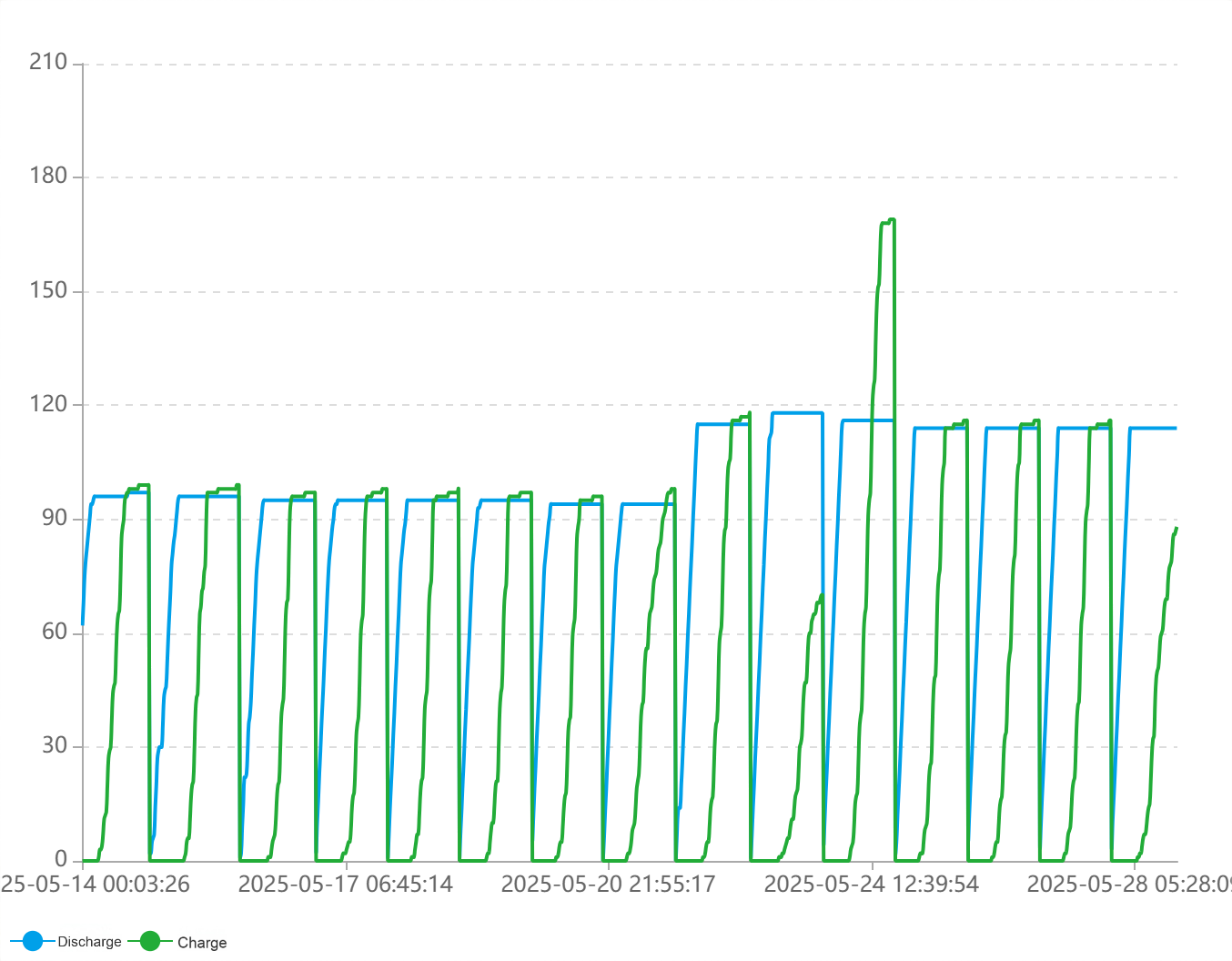

Actual measured data - 14 days of charge and discharge
Sampling period: 30 minutes

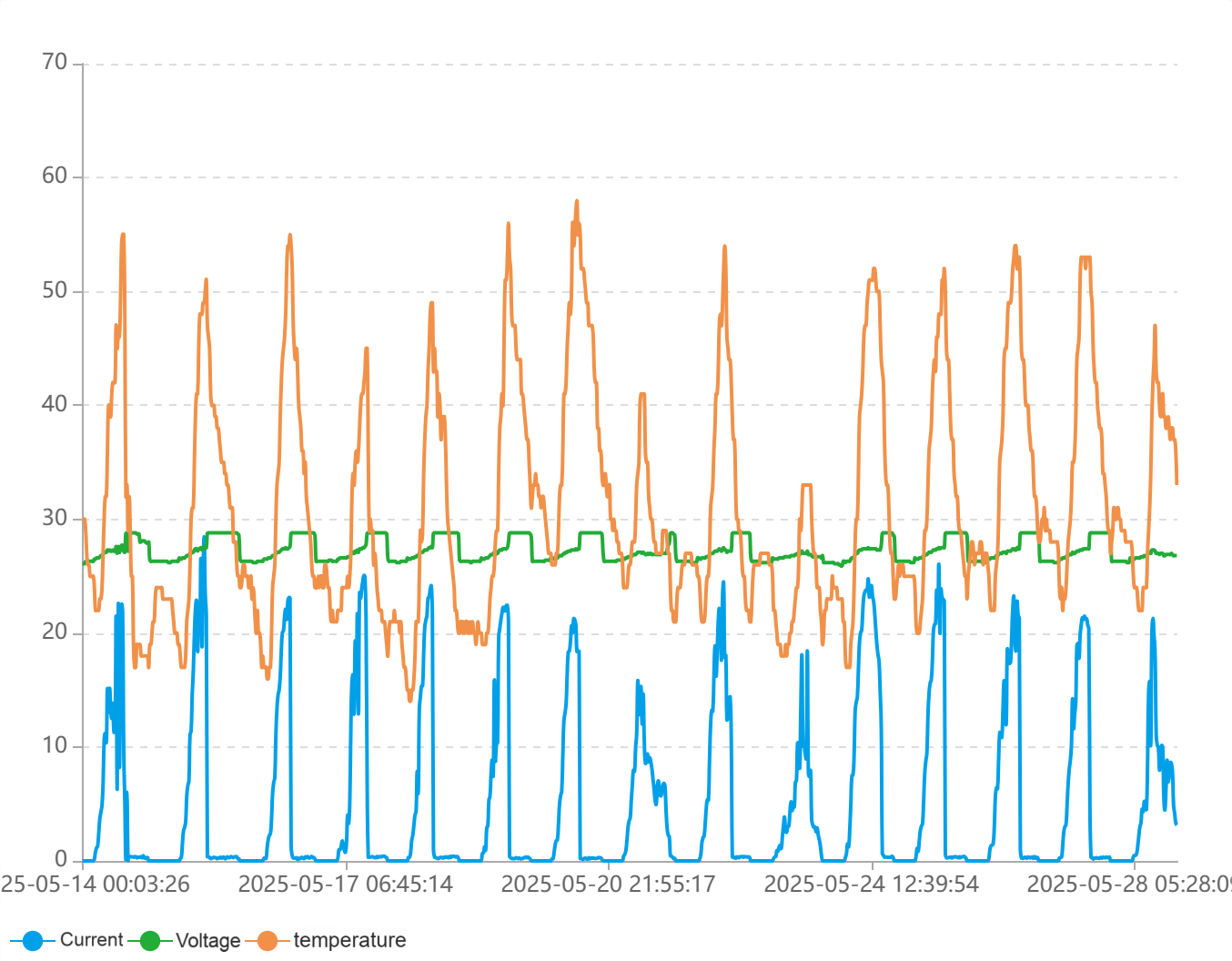

Actual test data - 14-day battery data
Sampling period: 30 minutes

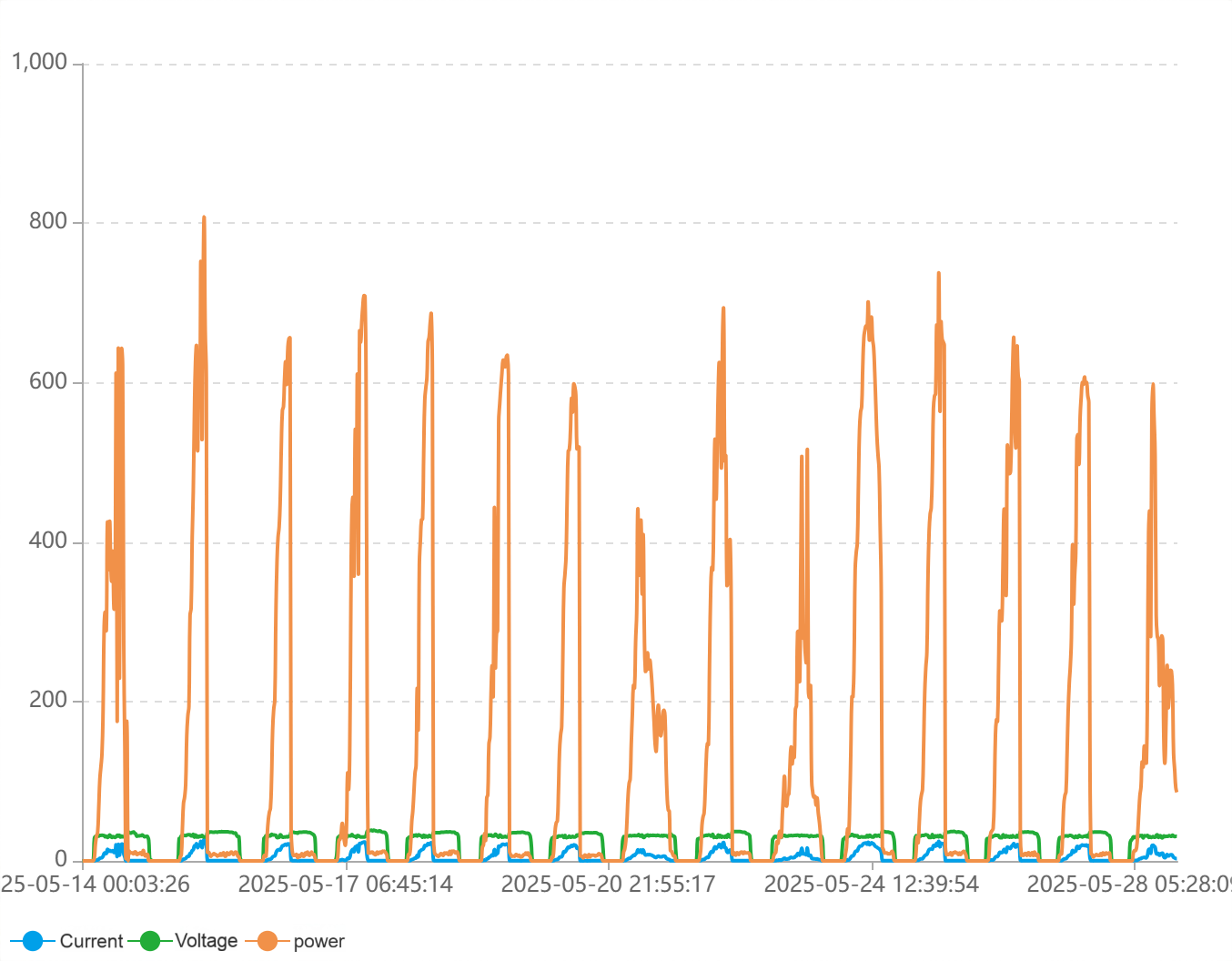

Measured data - 14 days of solar panel data
Sampling period: 30 minutes
