Linea Lux

Dynamic light sculptures, elegant geometric lines, environmentally friendly and energy-saving modern scene-based art lighting solutions.

urban and residential streets

Pedestrian walkway

Country lane

Expressway

Park square

Car parks

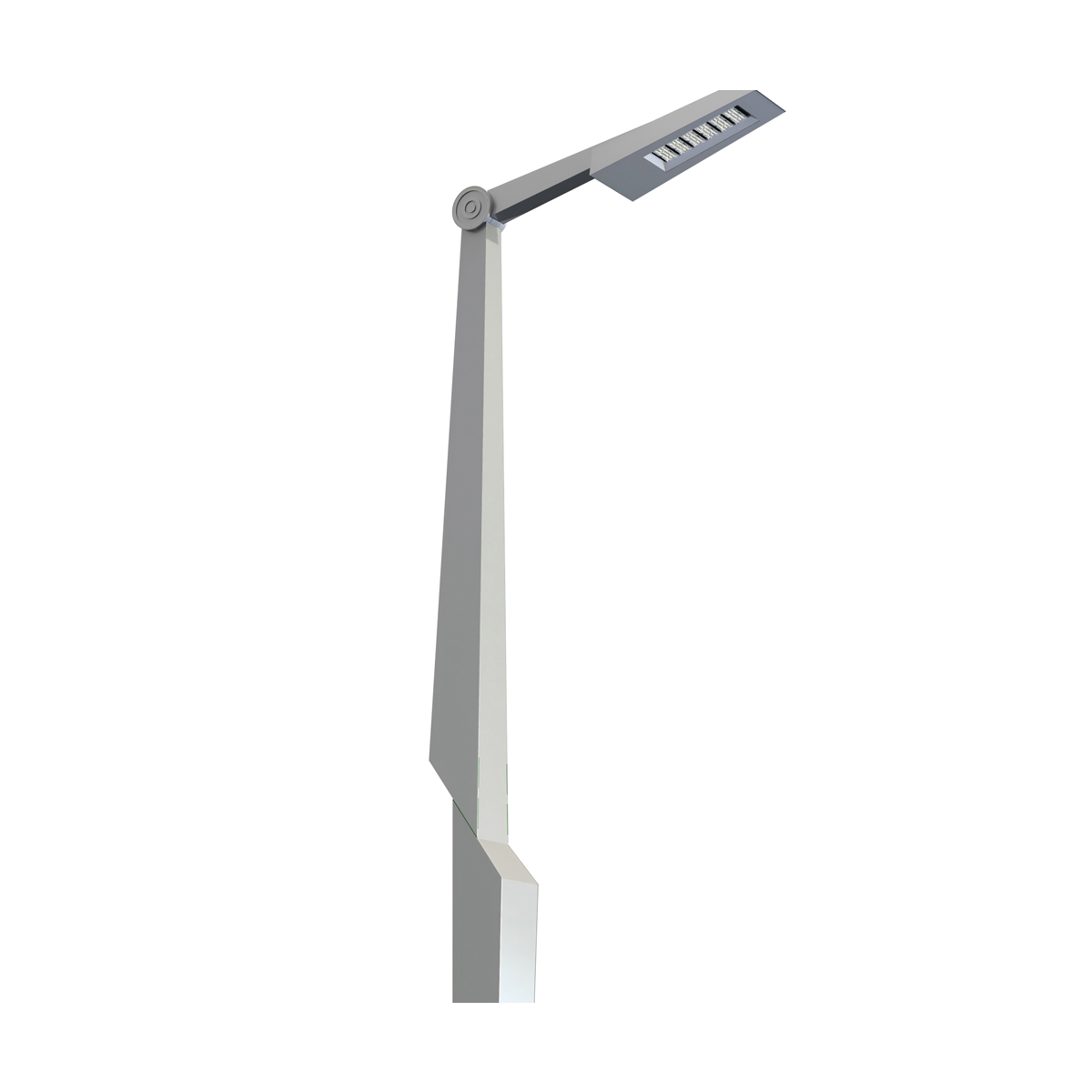

LineaLux is designed for modern urban lighting environments. It is inspired by the lines of human legs and perfectly combines elegant curves with efficient lighting technology. Its bionic shape subverts the traditional street lamp form. The linear lamp post extends lightly like a ballet dancer. While providing glare-free lighting, it also becomes a public art installation in the city, providing value-added services for the city 24 hours a day. Use LineaLux urban street lamps to upgrade your urban lighting and obtain excellent functions, performance and economic benefits.

Sculpture Art Lamps

LineaLux breaks through the industrial attributes of traditional street lamps, takes "urban sculpture" as the core of design, and condenses the aesthetics of the human body into the light and shadow language of the street. Its iconic "ballet dancer's leg" lamp post is cast with Q235B carbon steel, and the surface is treated with matte fluorocarbonate paint, showing a delicate texture like skin under sunlight. The contact angle of the paint film surface is greater than 110°, forming a hydrophobic layer similar to the lotus leaf effect, which makes it difficult for dust and pollutants to adhere.

High light efficiency LED chip

LED light sources have a variety of configurations and options. We use 170lm/w high-efficiency, low-heat, long-life chips that not only have excellent lighting effects and durability, but also provide long-lasting and stable lighting, energy saving and environmental protection.

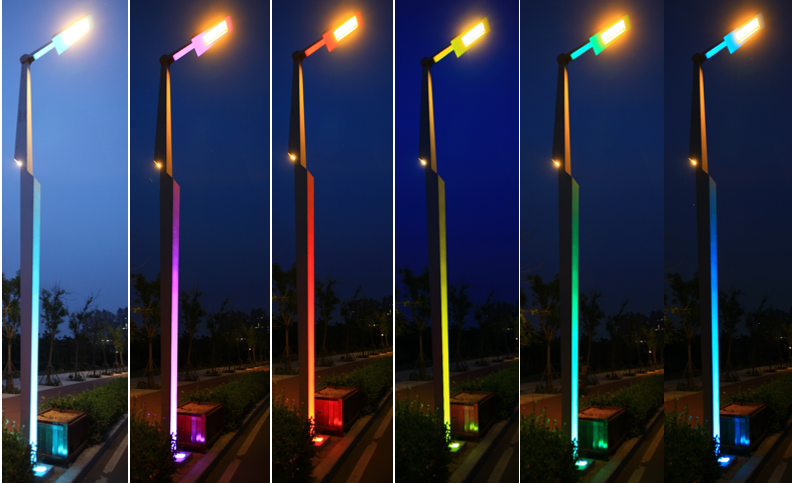

Festive lighting atmosphere

LineaLux's festive lighting atmosphere benefits from the use of OSRAM's professionally designed modules (light source electrical components) RGB neon changes, which are precisely programmed through the DMX512 console, upgrading functional lighting to a "dynamic light sculpture" in the urban space. The flange has built-in RGB full-color LEDs and intelligent driver modules, which can decompose 16 million colors. Combined with the multi-channel control capabilities of the DMX512 protocol, it realizes artistic neon effects from single-light micro-operation to full-domain linkage.

Each RGB neon light of LineaLux changes, which is a line of light poetry based on algorithm and aesthetic consensus.

LineaLux is different from conventional functional lighting. It has a special “scenario-based light art mode” – on top of the basic lighting layer, the intelligent control system can transform the street lamp array into an urban canvas: lamp posts choreograph narrative light and shadow dances during festivals. This design philosophy of transforming infrastructure into “storytelling urban sculptures” makes the street itself an immersive art gallery that carries regional culture.

Parametric Aesthetics: 24-hour interpretation of full-view dynamic light and shadow sculptures

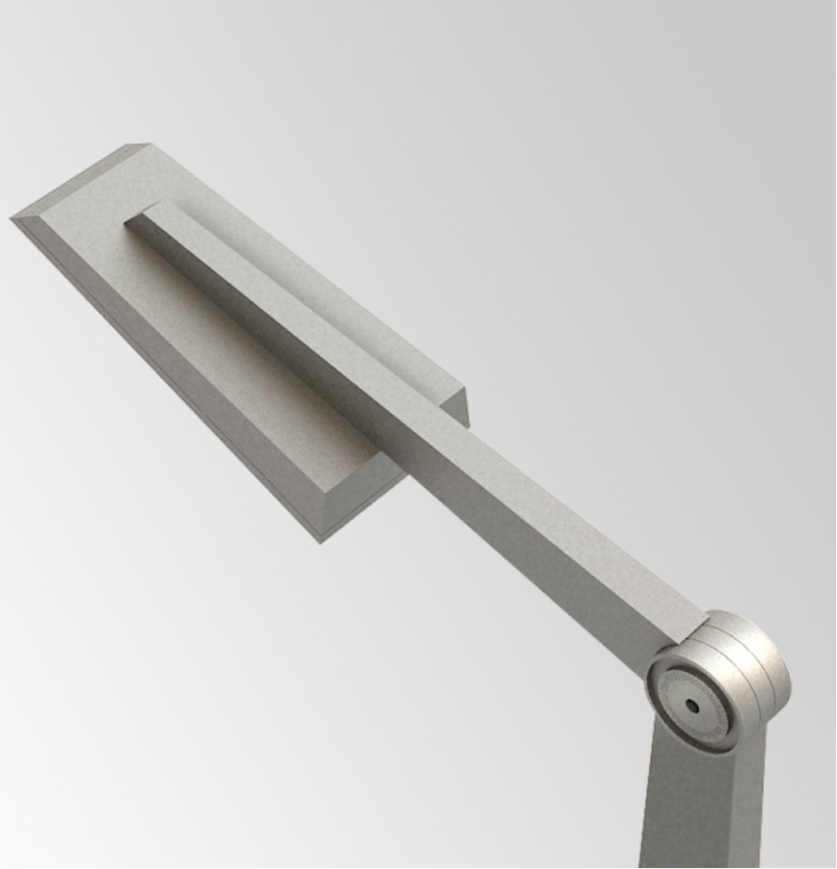

The tilt angle and joint rotation of each lamp have been optimized through parametric modeling to ensure that the dynamic visual tension like an art exhibit can be obtained from any viewing angle.

Three-Axis Intelligent Control System Achieves Full-Range Soft Lighting

LineaLux street lights achieve scientific uniformity of road lighting (Uniformity Ratio, Uo ≥0.6) through the coordination of optical engineering optimization, intelligent control algorithms and innovative structural design. While meeting the CIE 115:2010 international standard, they create a comfortable light environment without dark areas or glare.

Technical specifications

Protection class：IP 65
Impact Resistance: IK 08
Column: Ferritic Q235B carbon steel
surface preparation: Fluorinated acrylic paint
Service life: 20 years
Warranty Period: 3-5 Years
Working temperature: -40℃ to 60℃

optical information

Main road light source power	240W	300W
Auxiliary light source	80W	100W
Front RGB buried lamp	9.3 meter	11 inches long
Color	Silver grey / customizable color
LED colour temperature	2700K/customizable	4200K/customizable
Color rendering index (CRI)	＞70

Electrical information

input voltage	100-240ACV
Standard power supply	Constant current mode output
