SAT

High performance solar lighting solutions for most countries in the world
urban and residential streets
Pedestrian walkway
Country lane

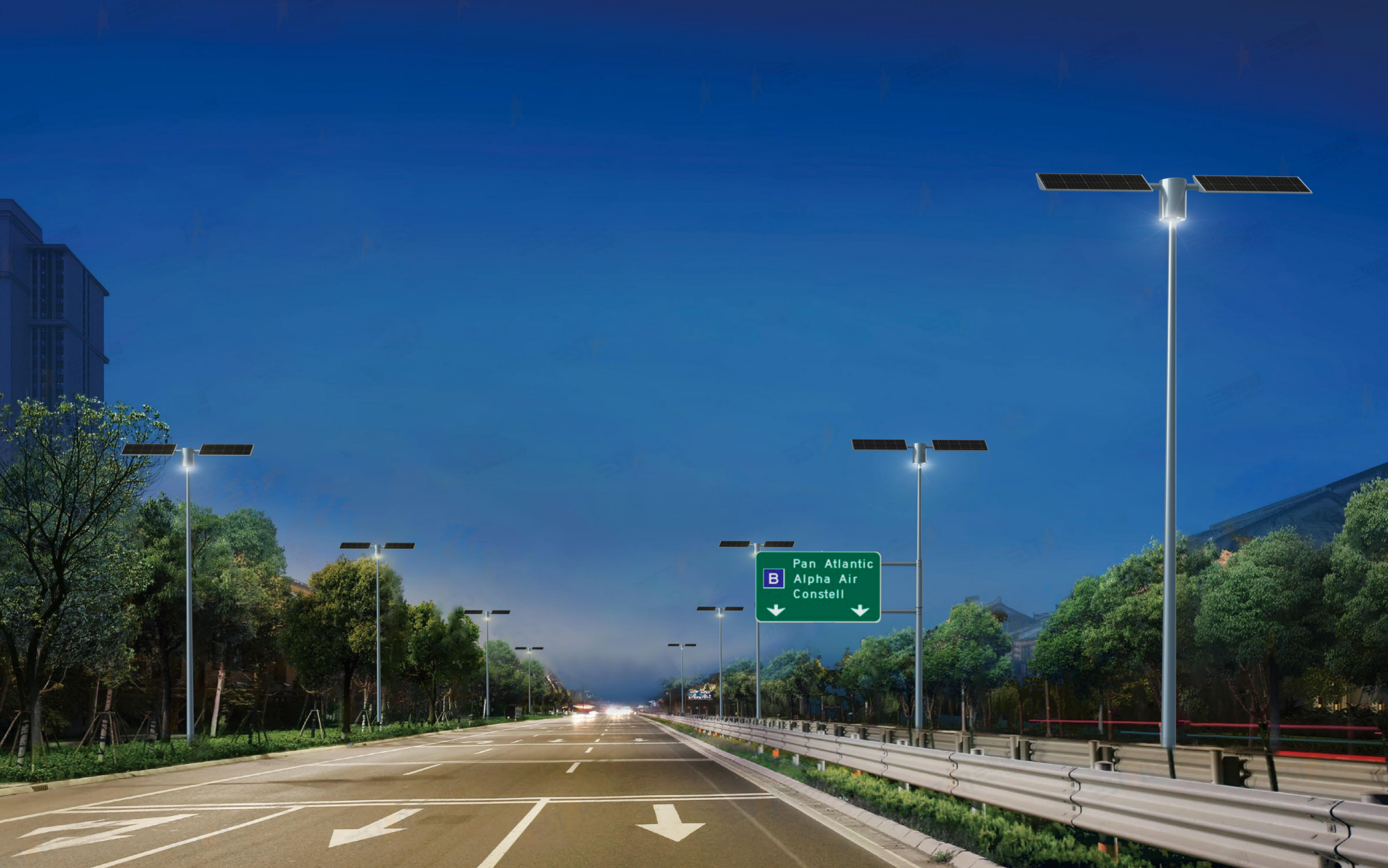

Expressway

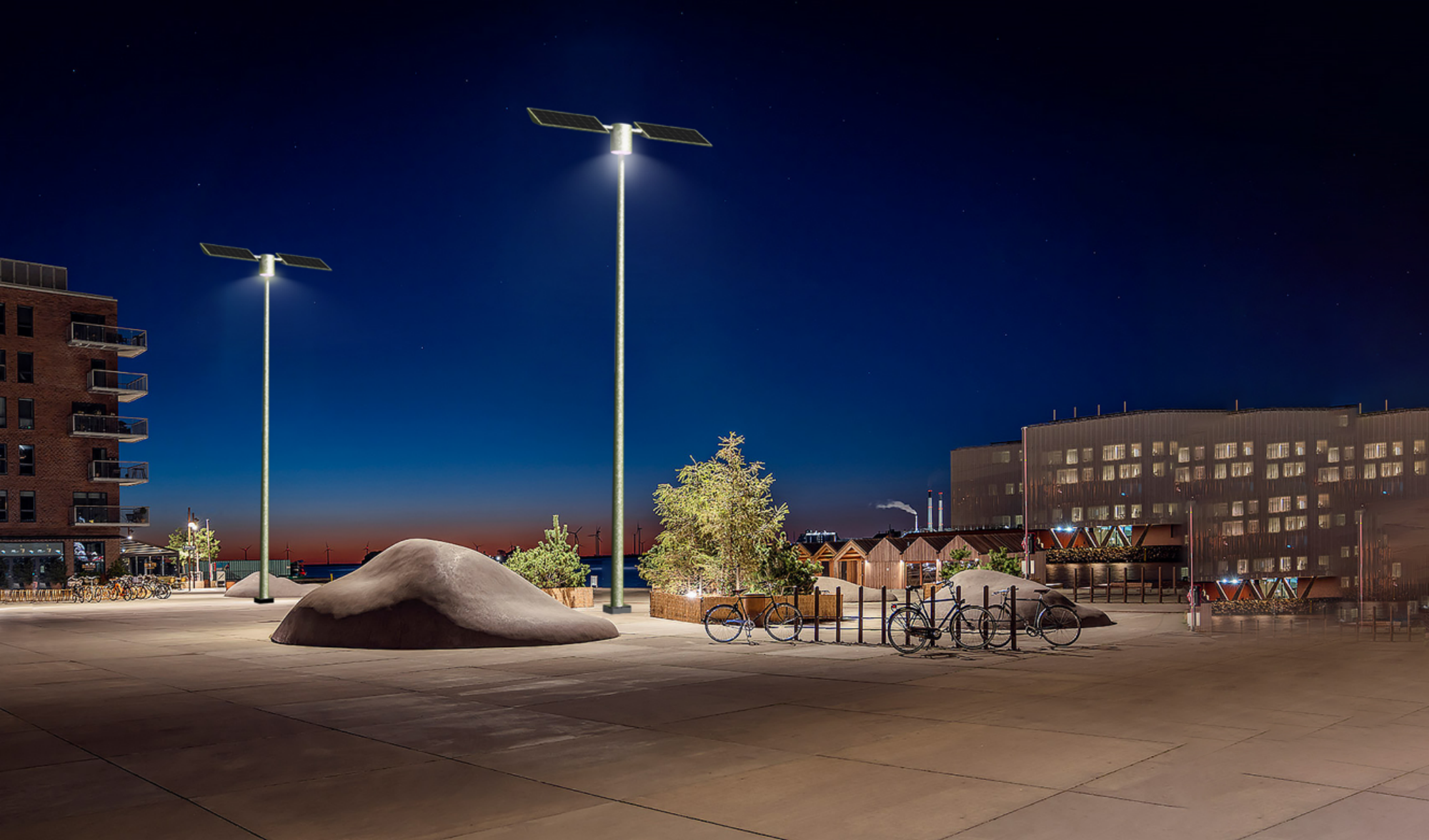

Park square
Car parks

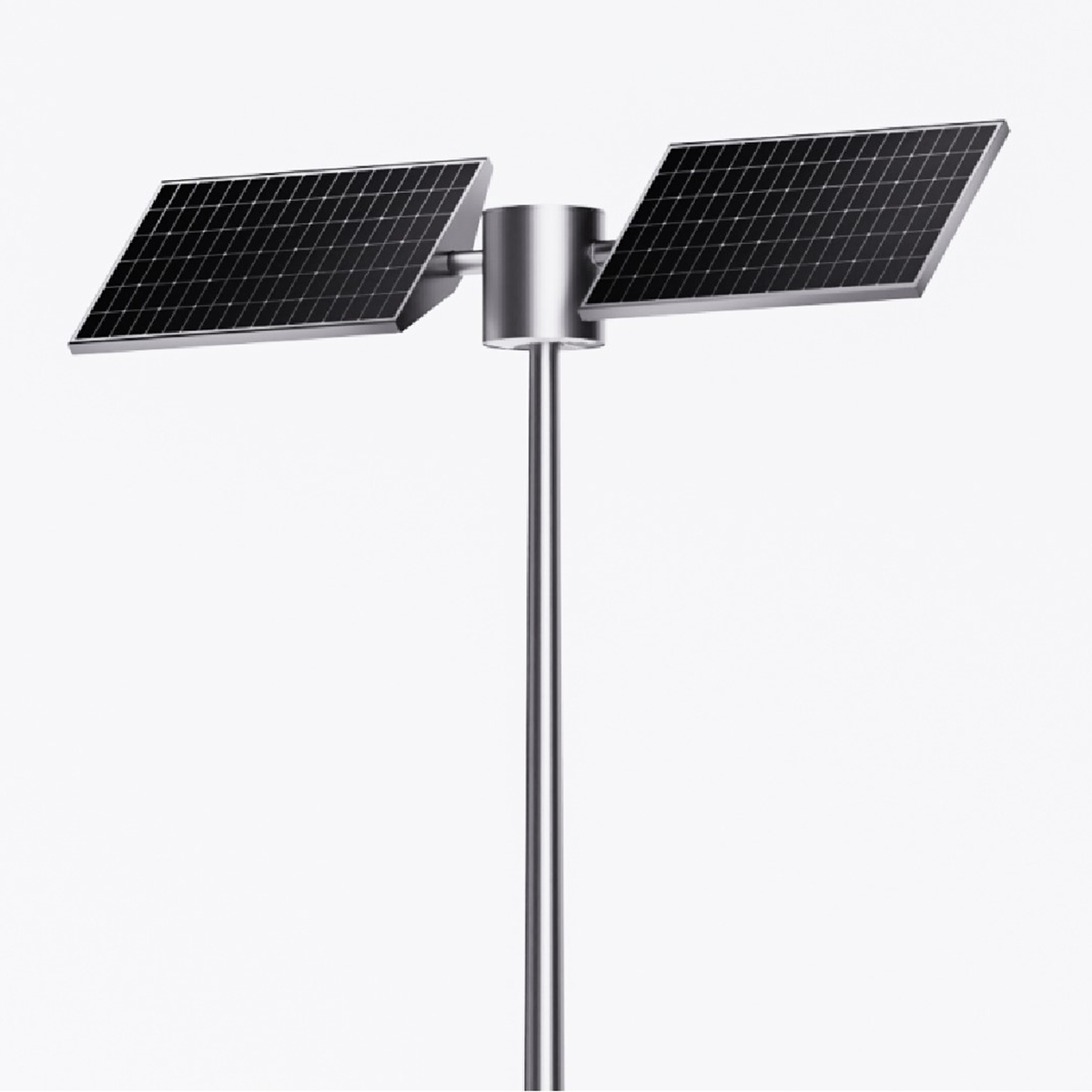

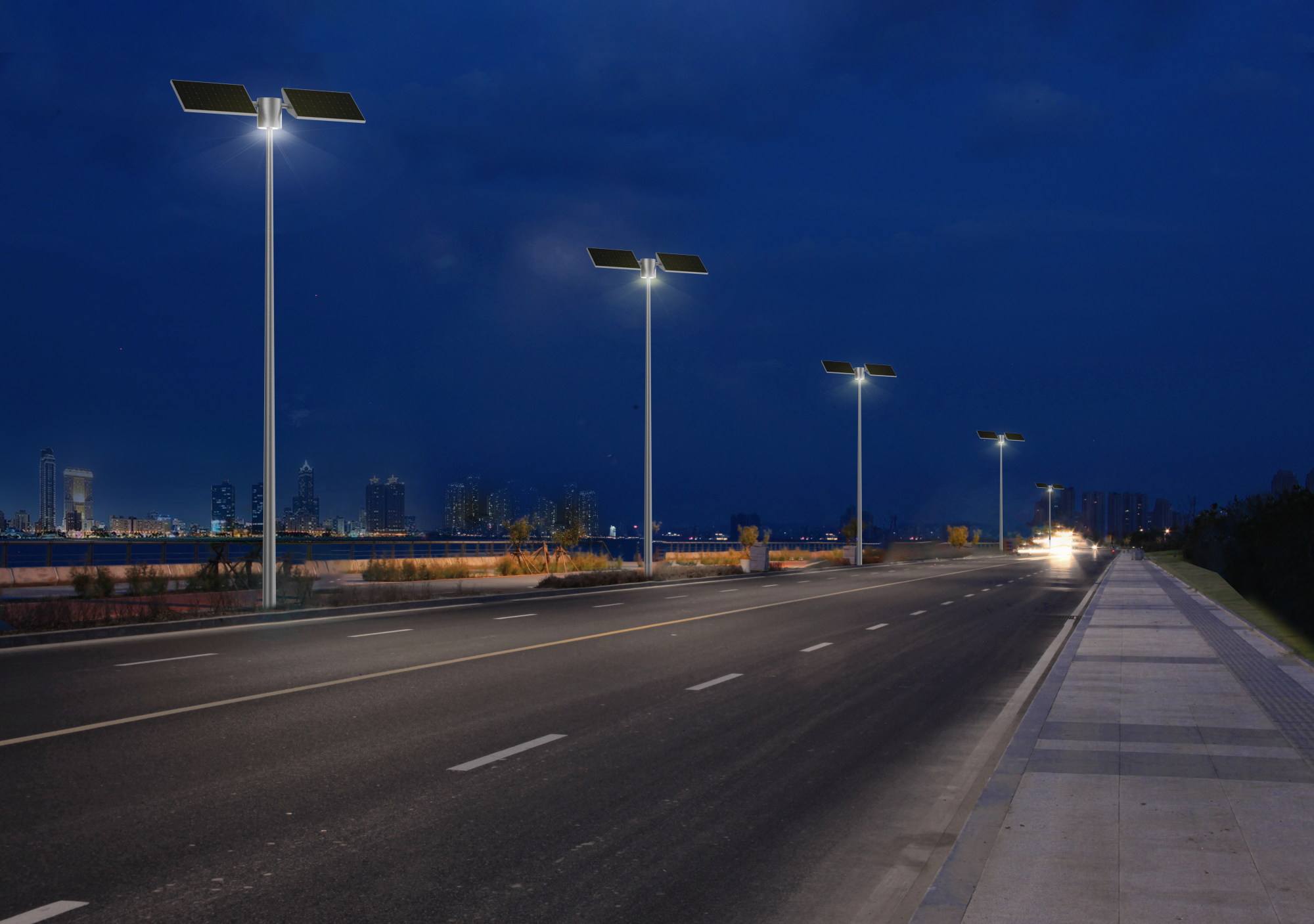

RAH is conceived as the next generation of solar lighting systems that provide an overall solution against the backdrop of the growing functional needs of cities in the future Jiemia. A new generation of intelligent solar lighting system for modern urban roads, highways and diversified outdoor scenes, covering the needs of urban main roads, secondary roads, parks, squares, parking lots, commercial districts, etc.

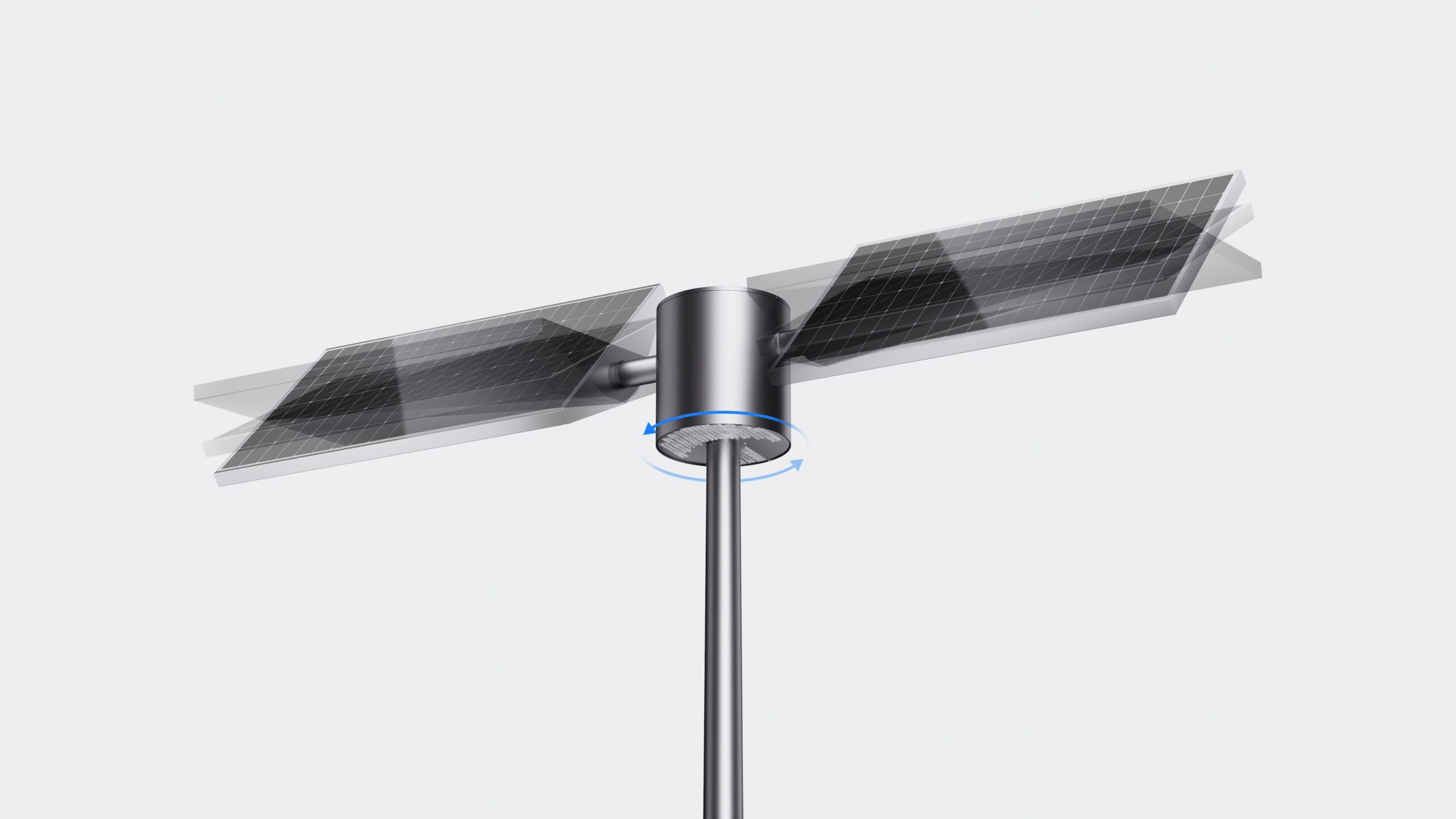

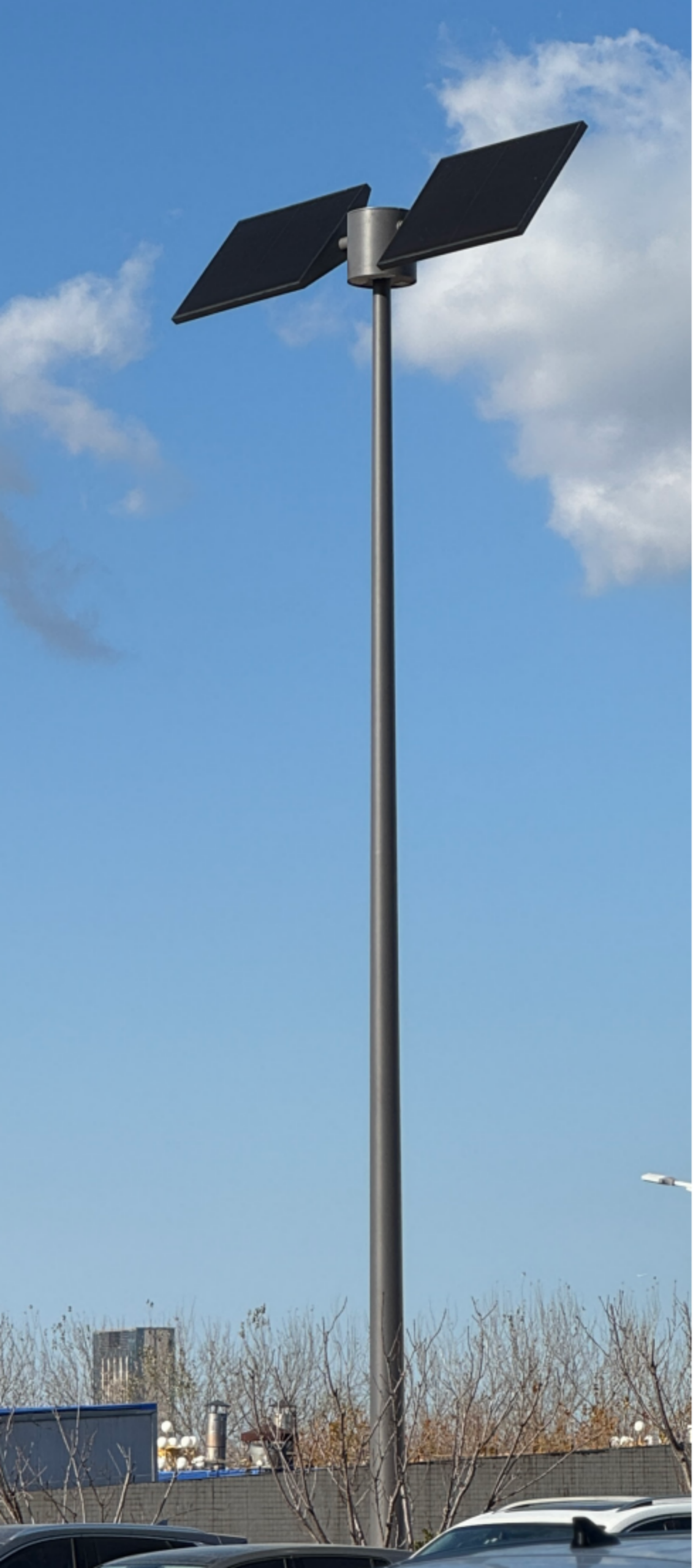

The iconic rotating “wings” are connected to algorithmic integrated controllers, which match advanced weather tracking and smart energy management for on-demand supply. This dual-wing system is designed to enhance energy resilience to meet future functional demands, particularly crucial for improving wireless network capabilities in off-grid communities and during emergency power outages.
Advanced MovingTrack MPPT tracking efficiency technology ensures excellent tracking efficiency and faster response times, maximizing energy collection even in variable weather conditions. The core concept of the design gives it an eternal quality that allows the system to expand from traditional infrastructure lighting to the public domain, where applications are often more diverse and culturally and ecologically sensitive.

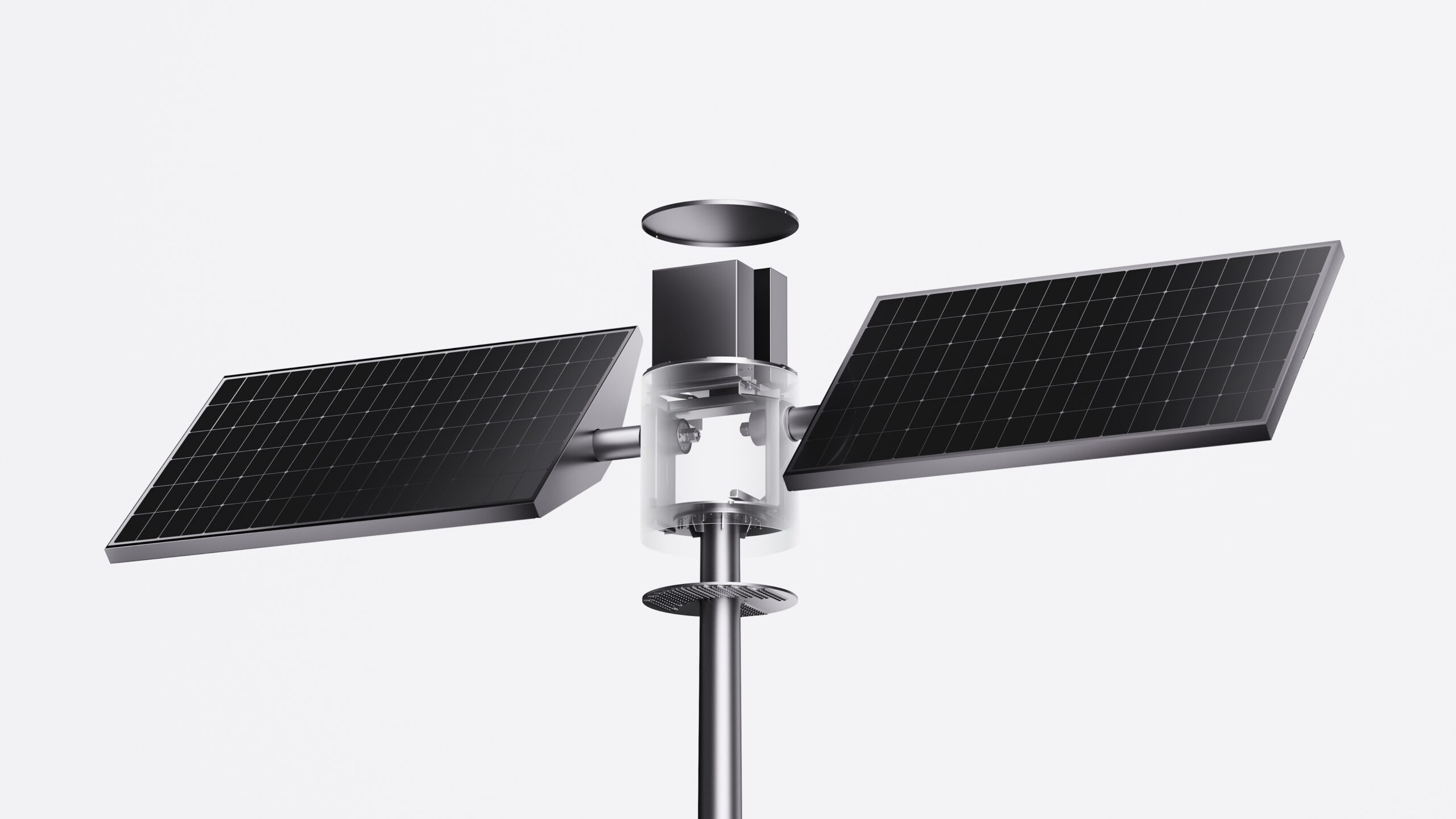

RAHs innovative design integrates solar panels,light sources, energy storage batteries and controllers to make the appearance more minimalist
Solar panels We use high eficiency monocrystaline slicon technology, with lower attenuation, photoelectric conversion eficiency over 23%, to ensureeficient charging all day long (including rainy days), dust and shielding technology, low carbon energy saving and environmental protection.
The BMs "smart brain" can automatically assess the intensity of light and battery power in real time around the clock. By balancing and optimizing thecharge and discharge strategy, the battery performance can be controlled and optimized to maximize the utlization of the battery capacity andprolong the service life.
The self-cleaning coating has no dust accumulation, ensuring the safe operation of solar panels throughout the year.
There are many configurations and choices of LED light sources. We use 245lm/w high light efficiency, low heat and long life chip, which not only has excellent lighting effect and durability, but also can provide lasting and stable lighting, energy saving and environmental protection.

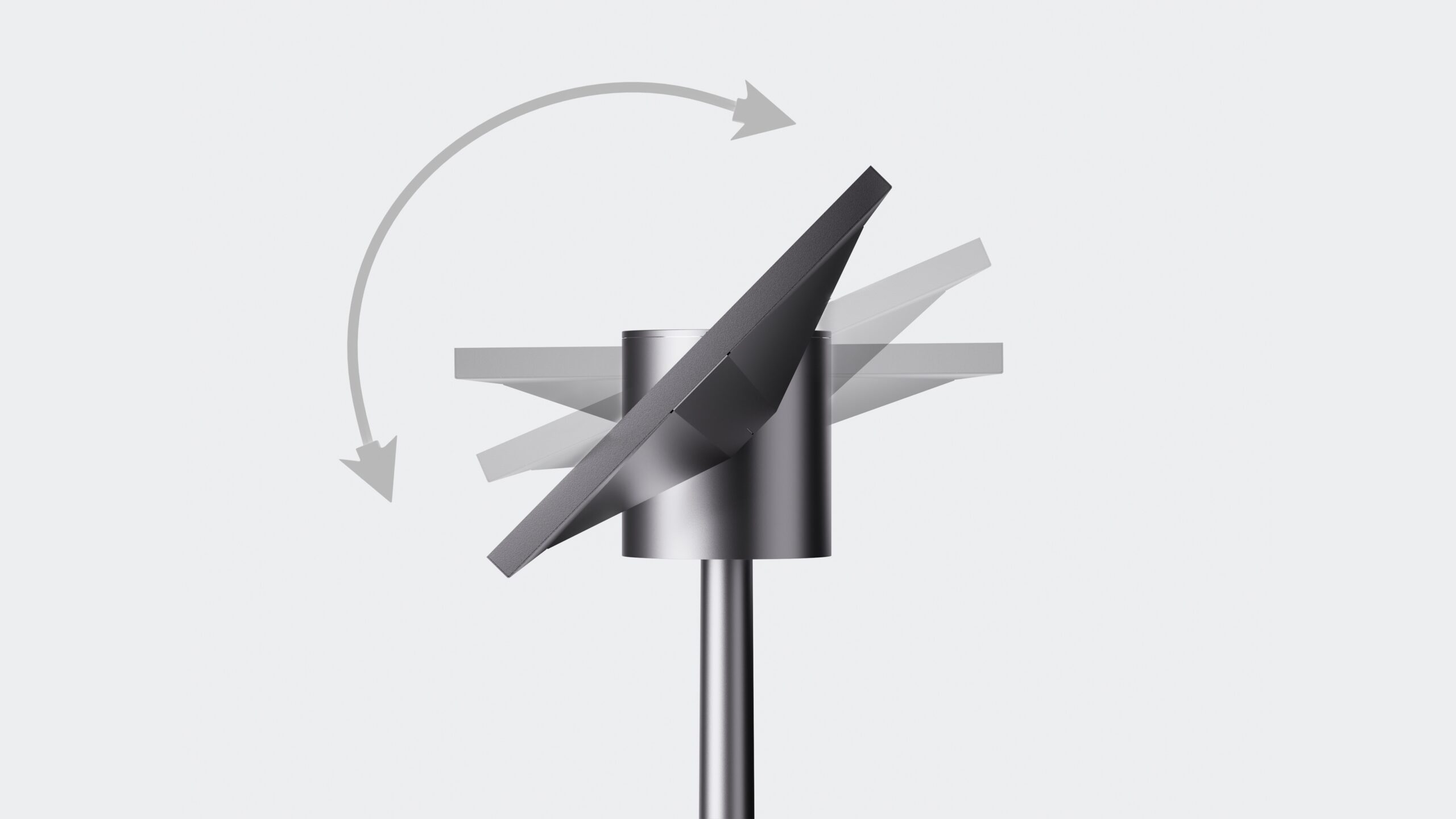

Full Latitude Conqueror RAH adjustable 90°

The RAH rotating “wing” is connected to an algorithmic integrated controller and the solar panel Angle is set to rotate within a range of 90º, suitable for all countries worldwide.

Horizontal installation to achieve truly non-perceptible lighting and end glare

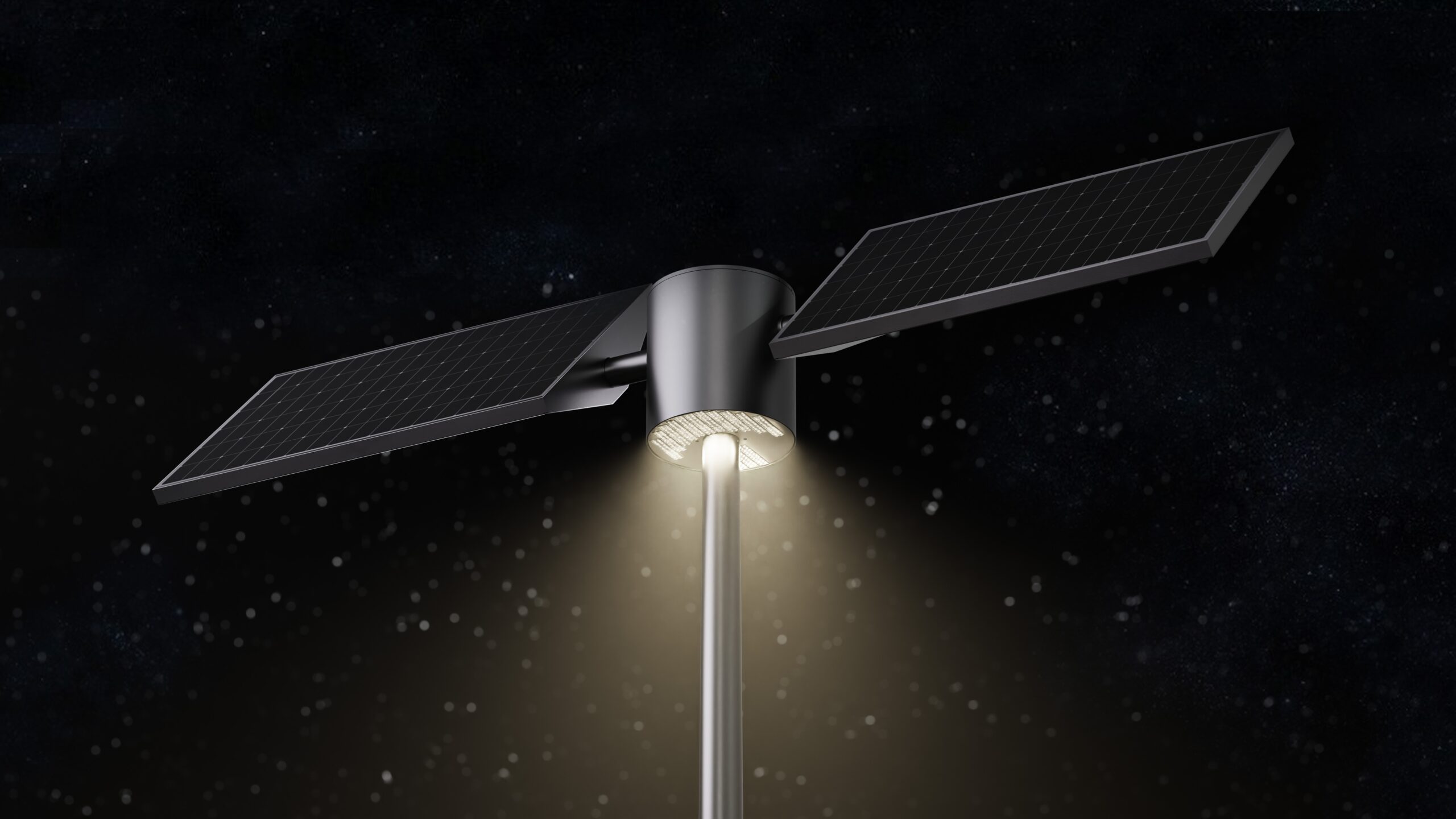

The lighting module is located at the bottom of the integrated box. The excellent horizontal installation angle, combined with the 0° polarized secondary optical optimization lens, realizes directional and precise light projection and eliminates lateral spill light, achieving an ultra-low glare value of UGR<16. The optical system has passed the IES Type III lighting certification and can construct a 15-30cd/m² uniform vertical illumination field to meet the lighting needs of more scenes.

Adaptability to extreme environments

The RAH is designed to withstand extreme weather conditions, including strong winds of up to 200 km/h in certain land categories. Its solar panels and batteries can operate efficiently in temperatures between -30°C and +60°C, ensuring continuous operation in any environmental condition.
Technical specifications
Compliance:CE mark
post: galvanized steel
metal parts: aluminium
surface preparation: Polyester powder coating
Standard color: Dark grey / customizable colors
Tightness level: IP 67
Impact resistance: IK 08 (IP 67 for the LED module, IP 65 for the battery)
LED colour temperature: 3000K/ 4000K/ 5000K
Color rendering index (CRI): >70 life time ≈ 100,000h – L95 (Lifetime may be different according to the size/configurations. Please consult us.)

Product Configuration

Model Installation height Pole type power (W) Solar panel power (210 battery) Photovoltaic panel area Battery capacity Endurance Pipette bore
SAT-14A 14M Curved 160 880W (sample) 1.95㎡
1722*1134mm
200Ah Low latitudes (5 + 1) Φ150*t6
SAT-14B 14M Angled 150 880W 1.95㎡
1722*1134mm
200Ah High latitudes (3 + 1) Φ140*t4
SAT-14C 14M Straight 140 726W 1.78㎡
2229.4*797.4mm
125Ah Low latitudes (3+1) Φ130*t4
SAT-12A 12M Curved 130 726W 1.78㎡
2229.4*797.4mm
125Ah Low latitudes (5 + 1) Φ140*t4
SAT-12B 12M Angled 120 726W 1.78㎡
2229.4*797.4mm
125Ah High latitudes (3 + 1) Φ140*t4
SAT-12C 12M Straight 110 506W 1.27㎡
2043*614mm
100 Ah Low latitudes (3 + 1) Φ130*t4
